KARCHER HDS 7/10-4 M (NEW Shape)

KARCHER HDS 7/10-4 M (NEW Shape)

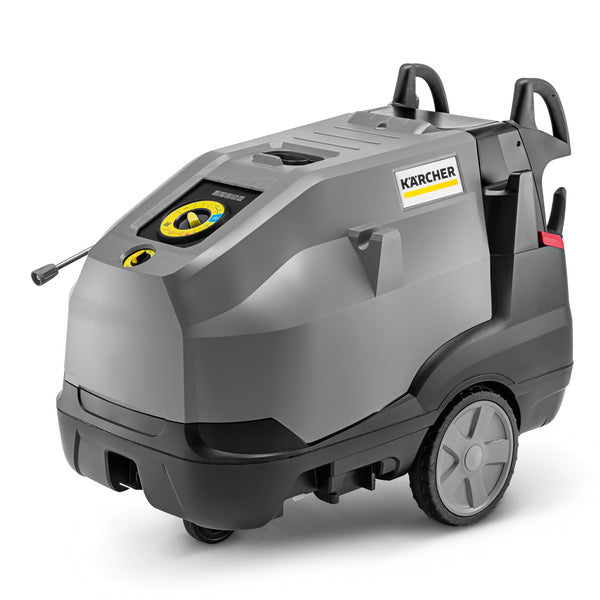

KARCHER HDS 7/10-4 M 4 Pole Motor Hot Water High Pressure Cleaner order no. 1.071-949.0

Extremely user-friendly middle-class hot water high-pressure cleaner with robust 3-piston axial pump, water-cooled 4-pole electric motor and two detergent tanks.

The HDS 7/10-4 M single-phase hot water high-pressure cleaner is the perfect entry-level machine in the middle class. It combines the highest cleaning quality with the best ergonomics and user-friendliness thanks to high-quality components and systems. The robust 3-piston axial pump with ceramic piston, the low-speed, water-cooled, 4-pole electric motor, optimised burner engineering and the economical eco!efficiency mode ensure safe and economical operation. The innovative EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long stainless steel spray lance with patented nozzle technology is also included as standard for effortless, fatigue-free and ergonomic work. The middle class machine also impresses with its two detergent tanks, intuitive 1-switch operation, ergonomic accessory storage, time-saving EASY!Lock quick-release fasteners and a sophisticated mobility concept. Consistently applied safety technology with water filter, safety valves and SDS hose also reliably protects the particularly maintenance-friendly HDS 7/10-4 M from damage.

Features & Benefits:

High efficiency
- In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
- The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.
Wide-ranging accessories with EASY!Lock
- EASY!Force Advanced for fatigue-free work without any holding force.
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- Rotating 1050 mm stainless steel lance.
Maximum efficiency
- Highly efficient, tried-and-tested "Made in Germany" burner technology.
- 4-pole electric motor with 3-piston axial pump.
- Water-cooled motor for a high performance and long service life.
Operational safety
- Easy-to-access water filter protects the pump against dirt particles in the water.
- Safety valves, water shortage and fuel protection ensure the availability of the machine.
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.

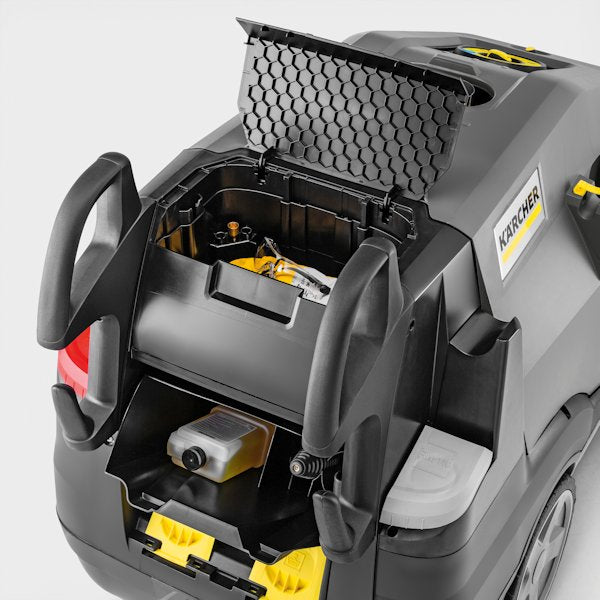

Multiple storage spaces for accessories are integrated into the machine
- On-board storage for a full range of accessories. Includes 2 hooks for suction hose and power cord.
- Spacious storage compartment, e.g. for detergents, gloves or tools.
Detergent dosing
- Easy to switch between detergent tank 1 and 2.
- Precise detergent dosing unit with rinse function.

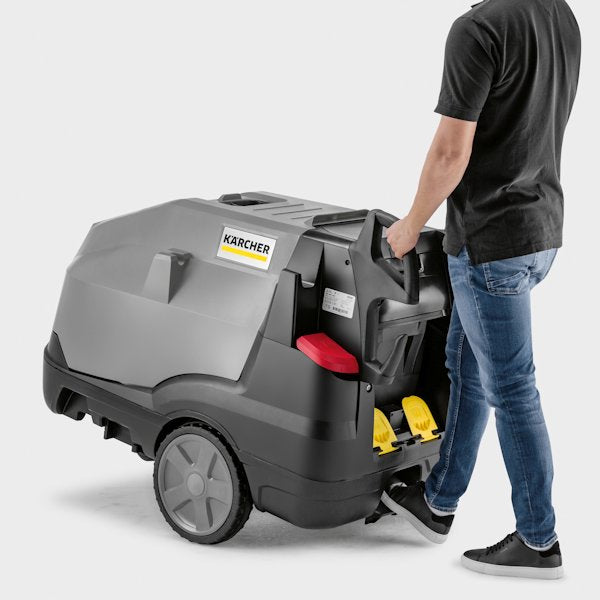

Mobility concept
- "Jogger" design with large rubber wheels and a steering roller.
- Integrated tipping trough for effortless transport over ledges.
- Push handles for simple transport and manoeuvrability.

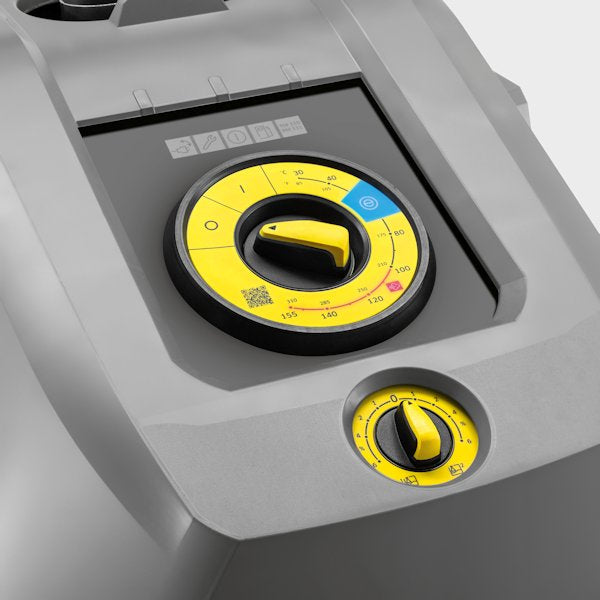

Simple operating concept
- One switch for all unit functions.
Scope of Supply
- ANTI!Twist
- Anti-twist system (AVS)
- Pressure switch control
- Spray lance, 1050
- Trigger gun, EASY!Force Advanced
- High-pressure hose length, 10
- High-pressure hose specification, DN 8,400 bar
- High-pressure hose type, Longlife
- High-pressure lance
- Power nozzle
- Cleaning agent function, 20 + 10 l tank
- Servo Control
- Dry running protection
- Two detergent tanks
Application Areas

Vehicle cleaning
Equipment and machinery cleaning
Workshop cleaning
Service station cleaning
Façade cleaning
Swimming pool cleaning
Cleaning production systems
Cleaning in production processes
Cleaning of sports facilities

Alternative part numbers :- 1071949, 1.071.949, 10719490, 1.071-494.0, 1071949, 1.077.901, 10779010, 1.077-949.0, hds 7/10, hds 7 10
Technical Data

Current type (Ph) 1 / 240 / 50

Flow rate (l/h) 350 - 700

Operating pressure (bar/MPa) 30 - 100 / 3 - 10

Max. temperature (°C) 80 - 155

Power rating (kW) 3.4

Consumption fuel oil (kg/h) 4.6

Power cable (m) 5

Fuel tank (l) 25

Weight (kg) 146

Dimensions (L x W x H) (mm) 1330 x 750 x 1060

Equipment

Trigger gun, EASY!Force Advanced

High-pressure hose, 10 m

Spray lance, 1050 mm

Power nozzle

Steam nozzle

Tanks for detergent, scale inhibitor and fuel can be filled from outside

Control panel with indicator lamps

Three piston axial pump, with ceramic piston

Pressure switch control

Electronic service control with LED display

Two detergent tanks

Dry running protection
.
