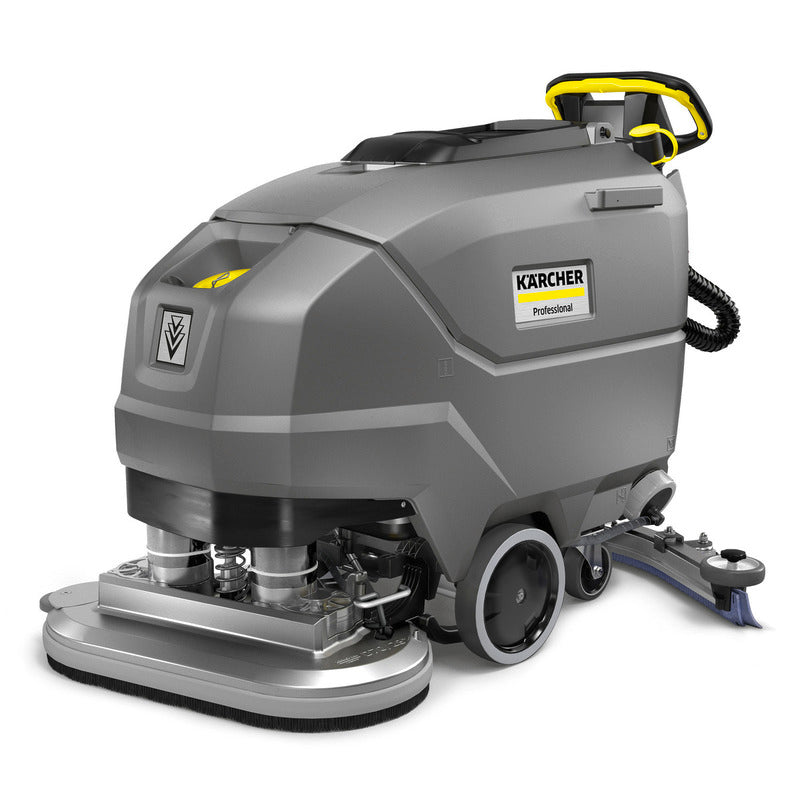

KARCHER BD 70/75 W Classic Battery Powered Walk Behind Scrubber Drier
-
KARCHER B 70/75 W Classic Battery Powered Walk Behind Scrubber Drier order no. 1.127-027.0
Equipped with high-quality components such as a dual-disk brush head with adjustable brush contact pressure and the aluminium squeegee, our battery-powered BD 70/75 W Classic Bp Pack push scrubber drier delivers impressively good results. A 75-litre tank and integrated, maintenance-free 115 Ah AGM battery ensure long runtimes. The compact design allows for optimum manoeuvrability of the versatile machine, while the robust design ensures it can be used even for tough cleaning jobs. It is very simple to use and maintain, making the machine extremely user-friendly.
Features & Benefits
Maintenance-free 115 Ah AGM battery and external battery charger included as standard
- Straightforward battery technology for use in a wide range of situations.
- Allows long periods of use and increases efficiency and productivity.
Brush head with disc system
Brush contact pressure can be adjusted as needed
- Contact pressure can be increased from 30 to 50 kilograms as needed.
- Lower contact pressure when there is only a little dirt or if the floor is delicate.
- High contact pressure for stubborn dirt or coating removal.
Compact and robust design
- Highly versatile, easy to manoeuvre machine that provides a good overview.
- Reduces the risk of damaging the machine or equipment.
Extremely simple operating concept
- All machine functions can be operated using switches, buttons and knobs.
- Colour-coded controls for easy operation and short teach-in times.
The brush head and squeegee are made from long-lasting aluminium
- Robust machine concept for tough working conditions with low failure rates.
- Also developed for applications in harsh conditions.
Alternative part numbers :- 11270270, 1.1270-27.0, 1.1270.270.0, 11270270,
Technical Data
Working width, vacuum (mm) 705
Fresh / waste water tank (l) 75 / 75
Max. area performance (m²/h) 3550
Brush rotation speed (rpm) 180
Brush contact pressure (g/cm²) 20.4
Frequency (Hz) 50 / 60
Voltage Charger (V) 100 / 240
Motor rating (W) max. 1850
Traction motor (W) 250
Weight without accessories (kg) 100
Weight inc Packaging (kg) 218.7
Dimensions (L x W x H) (mm) 1445 x 750 x 1065
Battery (V / Ah) 24 / 115
Battery voltage (V) 24
Battery capacity (Ah) 115
Sound level (dB(A)) 63
EquipmentDisc brush
Traction drive
Battery type, maintenance-free and Charger
Traction motor, 250 W-
