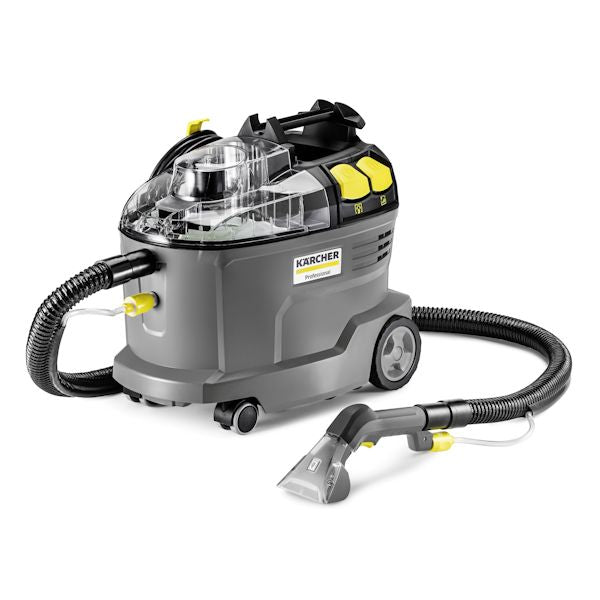

KARCHER Puzzi 8/1 C Carpet & Upholstery Cleaner
-
KARCHER Puzzi 8/1 C Carpet & Upholstery Cleaner order no. 1.100-243.0
Spray extraction cleaner for upholstery and spot cleaning.
The powerful and compact Puzzi 8/1 C is ideal for upholstery cleaning and spot cleaning of carpeted floors. Due to the excellent suction power, the Puzzi 8/1 C leaves carpets and upholstery virtually dry to touch in minutes. Its lightweight construction allows this unit to be transported easily from one place to another perfect for use in hotels, hospitals, shops and the automotive industry.
Technical DataPower Supply: 240v
Max. area performance (m²/h): 12-18
Air flow rate (l/s): 61
Vacuum (kPa/mbar): 236 / 23.6
Spray rate (l/min): 1
Spray pressure (bar): 1
Tank fresh water (l): 8
Tank dirty water (l): 7
Turbine power rating (W): 1200
Pump power rating (W): 40
Weight: 9.8 kg
Dimensions (L x W x H) (mm): 530x330x440
Equipment:
Spray hose with intergrated water feed 2.5m
Hand tool
Alternative part numbers :- 1100209, 1.100.209, 11002090, 1100222, 1.100-222, 11002220, 1100227, 1.100-227, 11002270, 11002430, 1100243
-
