KARCHER K 4 Power Control
Genuine Spare Parts

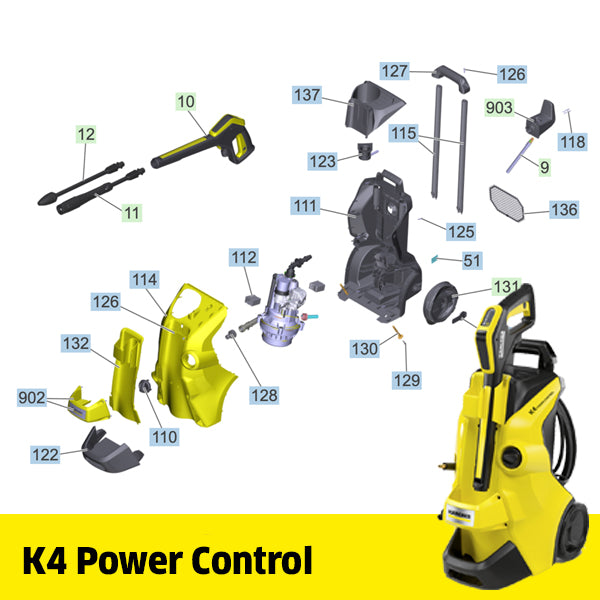

See Diagram & Click the link for price & availability
9. H 9 Q high pressure hose Quick Connect 2.641-721.0
9. Compatible Steel Braided Rubber Hose
10. Hand trigger gun G 145 Q Full Control 2.885-478.0
11. VP 145 Vario Power Jet 2.642-725.0
12. DB 145 rotor nozzle 2.642-728.0
110. Handhold switch 9.038-808.0
111. Housing rear 9.038-676.3
112. Holder pump 9.038-456.0
114. Housing Front 9.038-659.3
115. Telescopic handle 9.002-448.0
122. Bumper 9.038-661.3
123. RM retainer station 9.013-417.0
127. Handle 9.002-447.0
128. Connection 3/4 6.465-031.0
129 Screw 9.086-203.0
130. Bolt stand foot 5.317-896.0
131. Wheel in pairs 9.002-438.0
132. Holder Gun 9.038-665.3
136. Accessory net 9.002-435.0
137. Top Panel 9.002-445.0
901. Black cover 9.038-445.0
903. Spare parts set pedestal rear 4.100-775.0
-
