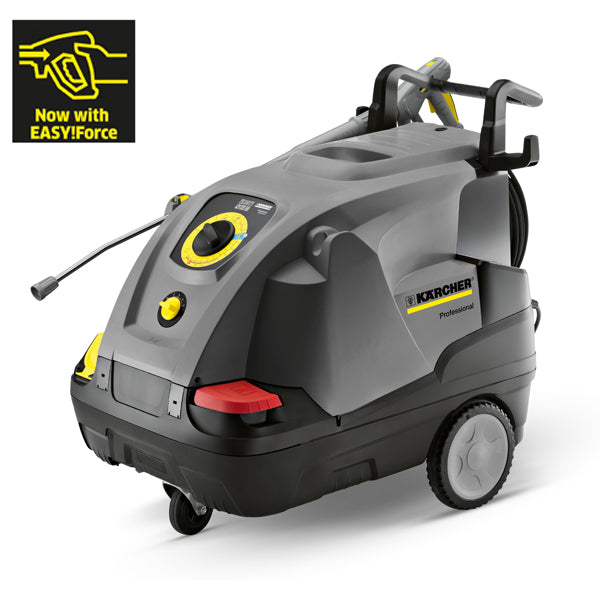

    KARCHER HDS 5/12 C Hot Water High Pressure Cleaner in anthracite order no. 1.272-902.0



    Attractive entry level model in the hot water compact class. Unique eco!efficiency mode ensures environmentally friendly and economical operation. User-friendly handling through central one-button operation. Excellent mobility thanks to large wheels and steering roller. Resistant chassis with integrated tanks for cleaning agent and fuel. On-board practical hose and power cable storage as well as accessory compartment for tools and nozzles.



    Features & Benefits



    Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.

    At last – work without getting tired: the EASY!Force high-pressure gun. EASY!Lock quick-release locks: durable and robust. And five times faster than screws.



    Efficiency

    eco!efficiency mode — economical and environmentally friendly, even during longer periods of use. Reduces fuel consumption and CO2 emissions by 20%. Accurate detergent dosing unit with clear rinse function.



    Ease of use

    Intuitive operation with large single-button selector switch. Large tank opening with filling chute.



    Storage

    Lockable accessory compartment for nozzles, tools, etc. Storage hooks for power cord and high-pressure hose. Integrated lance holder for easy transport.



    Mobility

    Jogger principle with large wheels and steering roller.

    Large integrated handles in the chassis.

    Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.



    Application Areas

    Vehicle cleaning
    Equipment and machinery cleaning
    Workshop cleaning
    Cleaning outdoor areas
    Service station cleaning
    Façade cleaning
    Swimming pool cleaning
    Cleaning of sports facilities
    Cleaning in production processes
    Cleaning production systems



    Alternative part numbers :- 1272209, 1.272.209, 1.272-209.0, 1.272-209.0, 1272902, 1.272.902, 12729020, 1.272-902.0



  • Technical Data

    Current type (Ph) 1 / 240 / 50

    Flow rate (l/h)500

    Operating pressure (bar/MPa) 120 / 12

    Max. temperature (°C) 80

    Power rating (kW) 2.9

    Consumption fuel oil (kg/h) 3.2

    Power cable (m) 5

    Fuel tank (l) 15

    Weight (kg) 86

    Dimensions (L x W x H) (mm) 1060 x 650 x 920



    Equipment

    Trigger gun, EASY!Force Advanced

    High-pressure hose, 10 m

    Spray lance, 840 mm

    SDS system

    Pressure switch control

    Integral fuel and detergent tank

  • .
