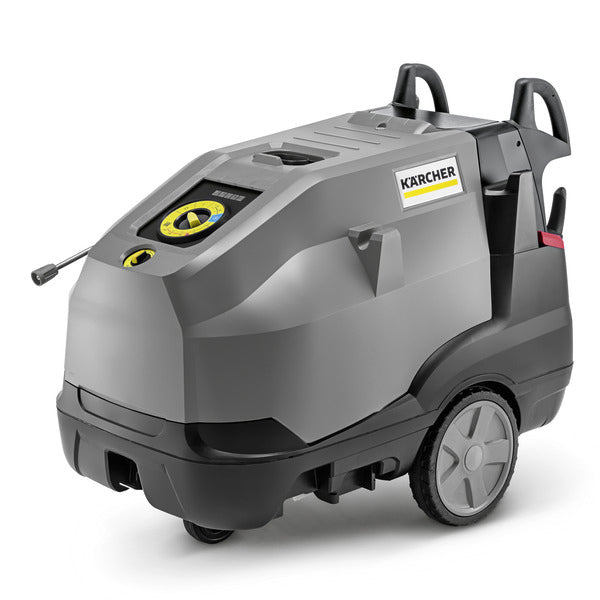

• KARCHER HDS 10/21-4 M order no. 1.071-939.0

    User-friendly, powerful hot water high-pressure cleaner with 4-pole, water-cooled electric motor, economical eco!efficiency mode and 2 detergent tanks.



    Technical specifications

    Current type: 3 / 400 / 50 Ph / V / Hz

    Flow Rate: 500 – 1000 l/h

    Operating Pressure: 30 – 210 / 3 – 21 bar / MPa

    Power rating: 8 kW

    Consumption fuel oil: 7.3 kg/h

    Heating oil consumption, eco!efficiency: 5.8 kg/h



    Weight with accessories: 160.2 kg

    Weight incl. packaging: 170.1 kg

    Dimensions (L × W × H): 1330 x 750 x 1060 mm



    Alternative part numbers :- 1071939, 1.071-939.0, 10719390

  • Technical Date:

    Pressure (bar/MPa) max. 110 / max. 11
    Flow rate (l/h) max. 360
    Max. water feed temperature (°C) max. 40
    Voltage (V) 220 - 240
    Power rating (kW) 1.4
    Weight without accessories (kg) 4.08
    Dimensions (L x W x H) (mm) 175.9 x 279.8 x 443



    Standard Accessories:

    High-pressure guns, Standard Quick Connect
    One-way spray lance
    Dirt Blaster spray lance
    High-pressure hose, 4 m
    Detergent application via, Suction
    Integrated water filter
    Adapter garden hose A3/4"

  •

  • Download Documents
